Cat7 S-FTP netkapall 305 m. rúlla - DK-1743-VH-305-MF-W

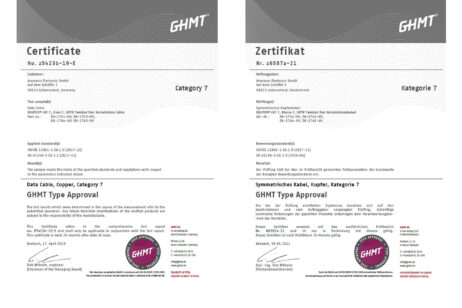

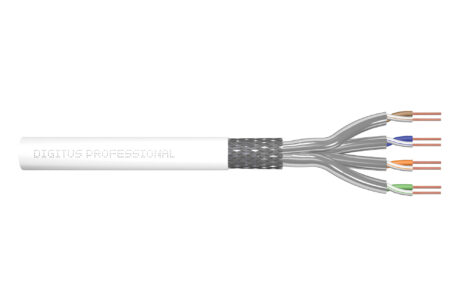

Lýsing Cat7 S-FTP kapall. Hér erum við að bjóða þennan kapal í 305 metra kassa. Þetta er AWG 26/1, 1200 MHz, LSZH-3 og er hvítur Nánar um DK-1743-VH Vottanir hér DESCRIPTION The DIGITUS® Cat.7 S/FTP installation cable is characterized by the following cable construction 4x2x AWG 26/1 and reaches a transmission frequency up to 1200 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for laying in residental as well as SoHo areas. TECHNICAL DETAILS Physical properties: Conductor: Bare annealed copper, solid AWG 26/1 Insulation: SFS-PE (Foam-Skin Polyethylene) Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shielding: Aluminum foil, providing 100 % coverage Overall shielding: Copper wire braid Outer sheath: Dca acc. to EN 50575; LSZH Outer sheath diameter (nominal): 0.52 mm nominal Color: White (RAL 9003) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to 75 °C Operating temperature range: -20 °C up to 50 °C Installation temperature range: 0 °C up to 50 °C Overall diameter Simplex (nominal): 5.7 mm nominal Weight (kg/km): 35 kg/km Electrical properties: Impedance: 100±15Ohm @ 4 – 100MHz; 100±25Ohm @ 100 – 600MHz Capacitance: 45 pF/m nominal @ 1 KHz Insulation resistance: 5 GOhm x km min. DC resistance: 95 Ohm/km max. (2% max. resistance unbalance) DC loop resistance: 190 Ohm/Km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 1b Signal propagation delay: 450 nS/100 m max. Propagation delay: 25 nS/100 m max. Separating class: “d” acc. to EN 50174-2 NVP: 79% Maximum operating length: 60 m Assortment: Twisted Pair Installation Cables Category: CAT 7 Shielding: S-FTP, pairs in metal foil and braid shielding CPR: Dca Length: 305 m Color: white Jacket: LSOH Structure: 4 x 2 AWG 26/1, solid twisted pair
