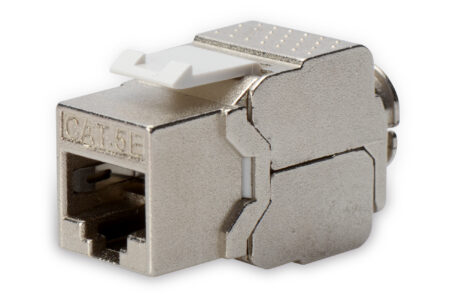

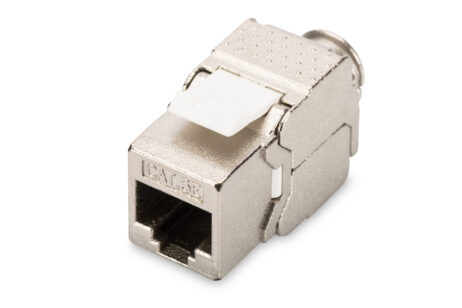

Keystone molar fyrir skermaðan Cat5e kapal, DN-93512

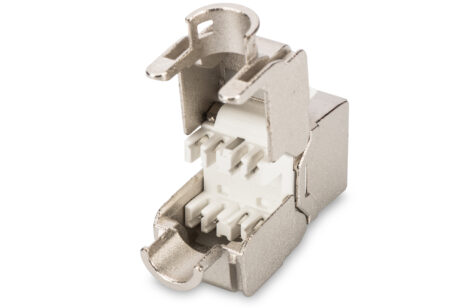

Lýsing Molar fyrir Cat5e kapal. Þessir passa fyrir patch panelana. Einfalt að nota, litamerkt þannig að auðvelt er að tengja. Verkfæra laus ásetning. DESCRIPTION CAT 5e Keystone Jack, shielded,Class D, RJ45 to LSA, tool free connection TECHNICAL DETAILS Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for patch panels and mounting outlets RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Tool-free installation 360° shield coverage Technical properties: Housing material: Zinc die-cast, nickel-plated RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA , UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Weight: 23 g DOWNLOADS AND CERTIFICATES Datasheet Datasheet PL QIG QIG EN DE
