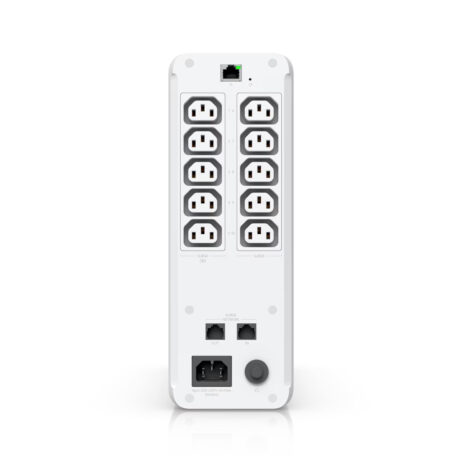

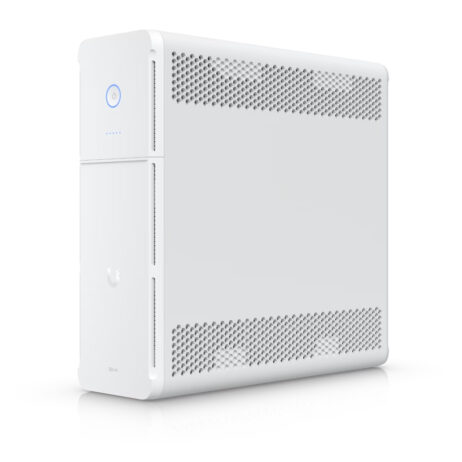

Lýsing Mechanical Dimensions 288 x 99 x 280.5 mm (11.3 x 3.9 x 11″) Weight 7.85 kg (17.3 lb) Enclosure Material Polycarbonate and acrylonitrile butadiene styrene blend Form Factor Desktop Weatherproofing IP20 Hardware Management Ethernet Networking Interface (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out Power (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (5) Battery backup/surge protection: C13 (5) Surge protection: C13 Capacity 1,000VA/600W Type Line interactive Input Voltage Range 170—280V AC Power Method (1) TN system, 220—240V AC, 6A Max., 50/60 Hz Nominal Input Voltage 230V AC Output Voltage 220—240V AC Nominal Output Voltage 230V AC Frequency Range AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz AC Voltage Regulation ±10% (Battery mode) Transfer Time 6 ms typical; 10 ms max. (Battery mode) Wave Form Simulated sine wave (Battery mode) Battery Type (1) Lead Acid 12V, 9Ah Runtime Full load: 2 min Half load: 7 min Battery Charging Time 6-8 hours recovery to 90% capacity Overload at On-Line Mode 110% 5 min go to fault 120% go to fault immediately Overload at Battery Mode 110% shutdown in 5 sec 120% shutdown immediately Short Circuit Protection at On-Line Mode Breaker, 250V AC, 10A Output Short-Circuit Current Ipeak 401.9A Irms 160.7A Buttons (1) Power (1) Factory reset LEDs Status Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery Battery Indicator All off: 0% (1) Steady blue: battery 1—19% (2) Steady blue: battery 20—39% (3) Steady blue: battery 40—59% (4) Steady blue: battery 60—79% (5) Steady blue: battery 80—100% Operating Altitude 3,000 m (1.9 mi) Operating Environment Pollution Degree 2 Ambient Storage Temperature -20 to 50° C (-4 to 122° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 0 to 95% noncondensing Certifications CE, IEC 62040-1
