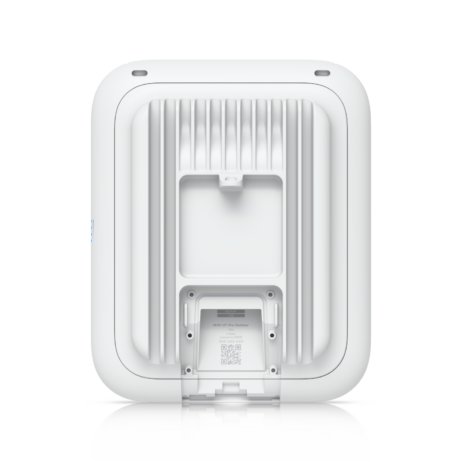

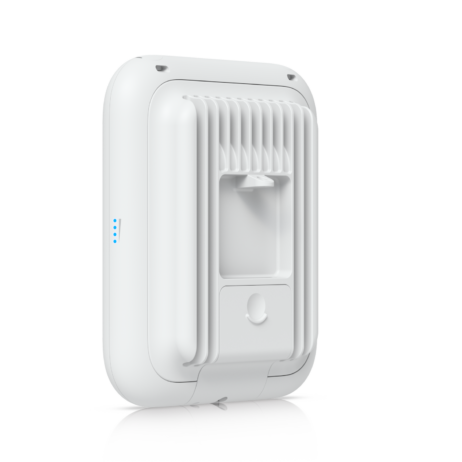

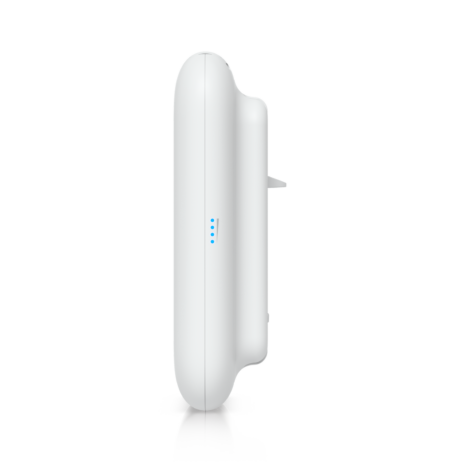

Þráðlaus úti aðgangspunktur WiFi 7, IP67 - UniFi U7-Pro-Outdoor

Lýsing Overview Dimensions Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″) WiFi Standard WiFi 7 Spatial Streams 6 Coverage Area 465 m² (5,000 ft²) Max. Client Count 300 Uplink 2.5 GbE Mounting Wall, Pole (Mounts Included) Weatherproofing IPX6 IP67 (With cable-gland door kit) Power Method PoE Performance MIMO 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 5 GHz Directional internal: 11 dBi External omni: 8 dBi 2.4 GHz Directional internal: 8 dBi External omni: 6 dBi Max. TX Power 5 GHz 29 dBm 2.4 GHz 23 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) Features Wireless Meshing yes Band Steering Yes 802.11v BSS Transition Management Yes 802.11r Fast Roaming Yes 802.11k Radio Resource Management (RRM) Yes Advanced Radio Management Yes Passpoint (Hotspot 2.0) Yes Captive Hotspot Portal Custom Branding Landing Page Yes Voucher Authentication Yes Payment-Based Authentication Yes External Portal Server Support Yes Password Authentication Yes Guest Network Isolation Yes Private Pre-Shared Key (PPSK) Yes WiFi Speed Limiting Yes Client Device Isolation Yes WiFi Schedules Yes RADIUS over TLS (RadSec) Yes Dynamic RADIUS-assigned VLAN Yes Hardware Max. Power Consumption 21W Supported Voltage Range 42.5—57V DC Networking Interface (1) 1/2.5 GbE RJ45 port Weight Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph) Pole Mount Diameter 1–2.5″ (25–63.5 mm) Management Ethernet Enclosure Material UV-stabilized polycarbonate, aluminum alloy Mount Material UV-stabilized polycarbonate LEDs System (1) Power: White/Blue (4) Mesh signal: Blue Certifications CE NDAA Compliant Yes Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 9.0.114 and later UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
