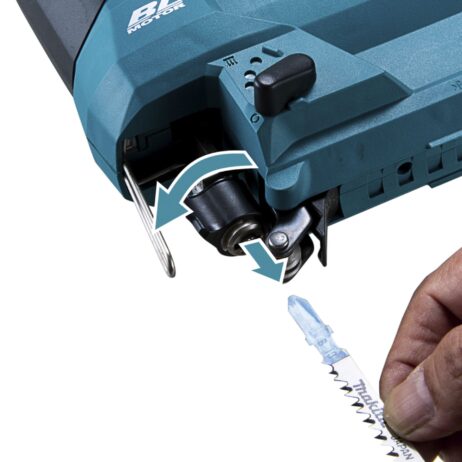

Lýsing Makita DJV184Z Battery-powered pendulum jigsaw (without battery and without charger) Powerful cordless jigsaw Saw blade can be changed without tools. Features: Operating mode: rechargeable battery, 18 V Design: pendulum stroke, 3-way adjustable and neutral position Adjustable speed Die-cast aluminium base plate can be swivelled 45° on both sides Cooling air blows out the interface Bright double LED Compact, light and quiet Motor brake Universal mount External suction unit can be connected Electronics with control Varahlutalisti hér Leiðbeiningar hér Technical data: Note: Battery and charger not included in scope of delivery Battery system: LXT Battery voltage: 18 V No-load stroke rate: 0 – 3000 min-¹ Lifting height: 23 mm Max. Cutting capacity wood 90°: 135 mm Max. cutting capacity steel 10 mm Max. cutting capacity Cutting capacity aluminium: 20 mm Sound pressure level: 82 dB(A) Vibration sawing wood: 7.4 m/s² Vibration sawing metal: 5.1 m/s² K-value vibration: 1.5 m/s² Dimensions (L x W x H): 259 x 78 x 205 mm Weight incl. battery: 2.1 to 2.4 kg Scope of delivery: Cordless pendulum action jigsaw DJV184Z Suction nozzle Plastic glide shoe Protective cover Jigsaw blade: Working length: 77 mm Total length: 100 mm Material: HCS Angular sharpened teeth for clean and fast cuts Application: Wood, veneer and plastic Plastic, wood: 5 – 50 mm Hexagonal pin spanner Technical Data No-Load Speed (min-1) 0 – 3000 Cutting depth in wood (mm) 135 Cutting Depth in Aluminium (mm) 20 Cutting depth in steel (mm) 10 Saw Blade Diameter (mm) 100 Handle Yes Pull Function No Laser Guidance No Energy Supply Battery Voltage (V) 18 Type of Battery / Rechargeable Battery Lithium-Ion Rechargeable Batteries Included in Delivery No Type Type Jig saw Operating Mode Rechargeable Battery General Overall Length (mm) 259 Colour Blue / Black Width (cm) 7,8 Height (cm) 20,5 Depth (cm) 25,9 Weight (kg) 2,1
