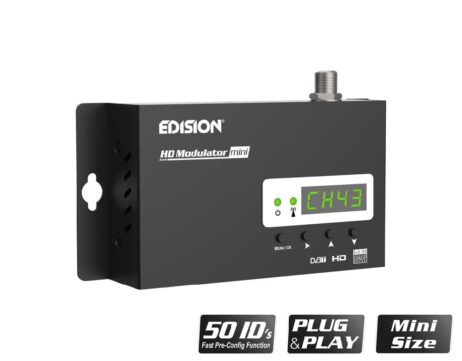

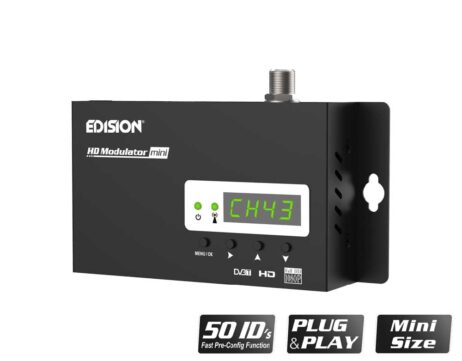

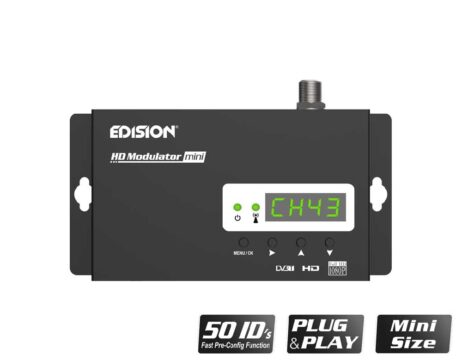

Lýsing Með mótara (modulator) getur þú búið til loftnetsmerki úr mynd merki frá myndlykli til þess að senda myndina um loftnetskerfi það sem að er fyrir í húsinu. Þessi mótari er fyrir stafrænt merki og því hægt að senda myndina frá myndlykli um allt hús í háskerpu. Hann er HDMI inngang til að móta á DVB-T. Upplýsingar um Edision DVB-T mótara: Digital, single channel FULL HIGH DEFINITION modulator in mini size. With input from any HDMI source (Terrestrial & Satellite decoders, cameras, DVD, DVR, etc.), it modulates and produces output up to FULL HIGH DEFINITION 1080p MPEG4, Terrestrial Digital DVB-T signal, in VHF / UHF bands. Easy and fast configuration with the ID Pre-Config function and space saving in the installation with highly compact dimensions for an easy installation, even in minimal space conditions. Technical features: – Digital single-channel HDMI Modulator to DVB-T/MPEG4 – INPUT signal: HDMI – OUTPUT signal: Digital Terrestrial DVB-T signal, MPEG4 – High Video Resolution up to 1080p@30FPS – Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan – Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69) – RF Output Level: Factory default 90 dbμV, with adjustable gain up to 6dbμV or attenuation up to -14dbμV – MER: >35dB at Maximum RF output level – Symbol Rate Up to 31.668 MBPS – Bandwidth 7MHZ, 8MHZ – Video Encoder: MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1,

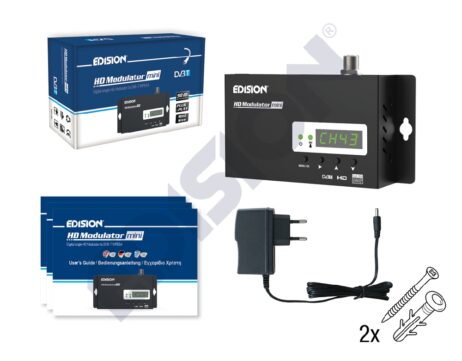

[email protected] – Audio Encoder: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH) – Processor System: CPU 200MHz 32Bits RISC – Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit – Input HDMI v1.4a – USB Type USB 2.0 HOST – Fast Pre-Config Function / 50 IDs Selectable – Backup Config File by USB – Software Upgrade via USB – Ports: HDMI IN, RF OUT, USB, DC 5V, GROUND – 4-digit LED display – 4-display buttons – Power supply unit type: Adapter Input:100~240V AC, Output: DC 5V/2.0A – Low Power Consumption in normal working mode: 10W maximum Package includes: – HDMI Modulator mini – Power Supply Unit 5V/2.0A – Mounting screws – User Manual EN/DE/GR/ES/IT/FR General: – Dimensions: 132x84x31 mm (mini size) – Weight: 0,35 kg – Color: black – Warranty: 2 years
